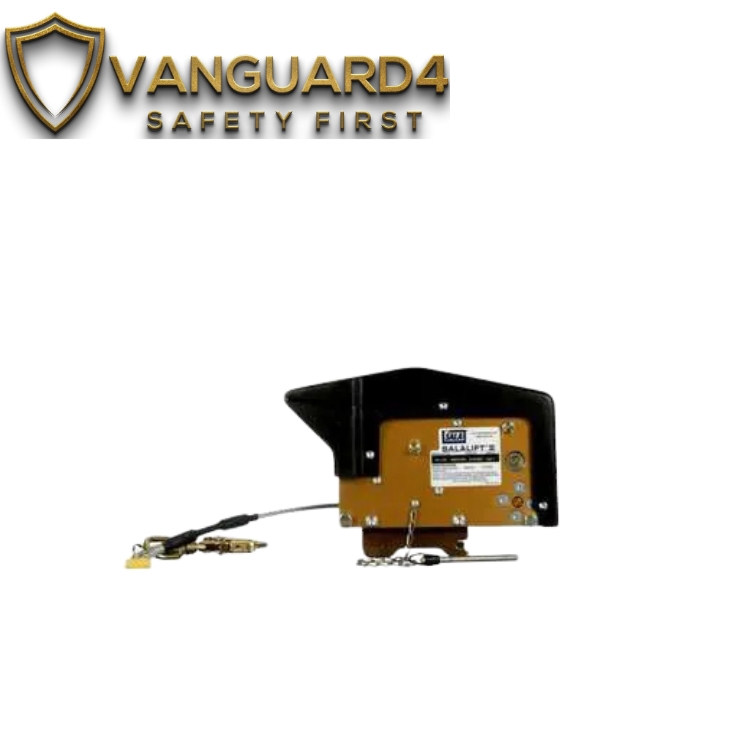

3M DBI-SALA Salalift II Winch 8102009

  •  Manually operated winch
  •  90 ft. (27 m) of 3/16″ (5mm) galvanized steel wire rope
  •  6:1 gear ratio mechanical advantage
  •  Quick mount bracket
Call to Order
Specifications
Brand
DBI-SALA®
Cable Material
Galvanized Steel
Carabiner/Hook Material
Zinc Plated Steel
Case Quantity
1
Connected Safety ID Equipped
Yes
Install Type
Portable
Net Weight (Imperial)
37 lb
Net Weight (Metric)
17 kg
Overall Length (Imperial)
90 ft
Overall Length (Metric)
27 m
Product Color
Anodized Yellow, Black
Product Type
Winch
Recommended Industry
Construction, General Industrial, Mining, Oil & Gas, Transportation, Utilities, Wind Energy
Standards/Approvals
ANSI Z117.1, ANSI Z117.1-1995, OSHA 1910.146
Weight (Imperial)
17 kg
Weight Capacity
350 lbs. (159 kg)



Details
  • Manually operated winch
  • 90 ft. (27 m) of 3/16″ (5mm) galvanized steel wire rope
  • 6:1 gear ratio mechanical advantage
  • Quick mount bracket
  • Free-wheel mode
  • Built-in fall protection
  • Overload clutch
  • Durable corrosion resistant construction
  • Level wind system
  • Reserve lifeline retention system
  • Swiveling snap hook with impact indicator
  • Equipped with 3M™ Connected Safety ID (CSID)

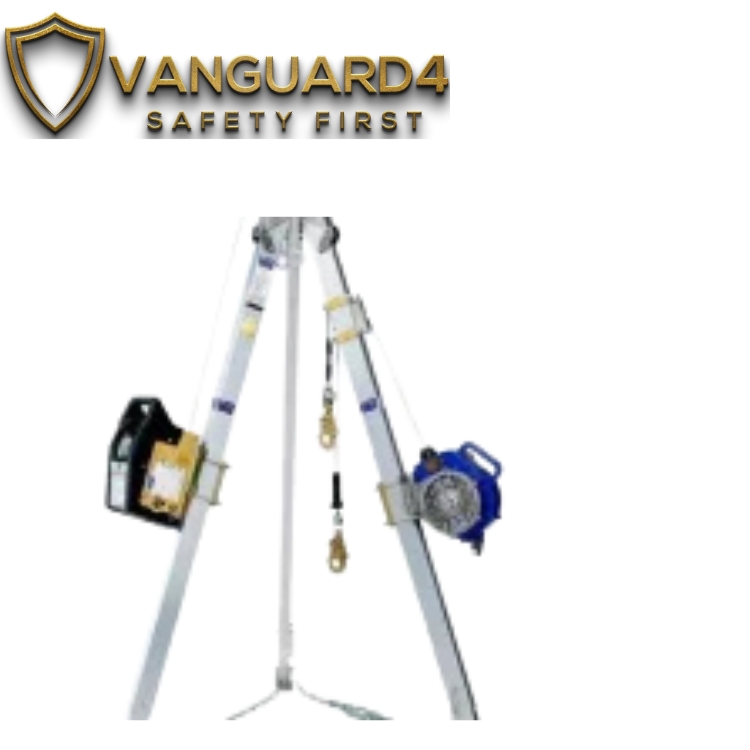

  • Order tripod or davit rescue system separately

Winch with 90 ft. (27 m) of 3/16″ (5mm) dia. galvanized steel wire rope and swivel snap hook, mounting bracket and carrying bag.

When it comes to confined space entry/rescue, it is essential that equipment operates perfectly and quickly. DBI SALA® has an extensive line of rescue and retrieval systems with decades of proven field service. Safety engineers and site directors trust DBI SALA® for the type of high quality, rugged systems that will ensure top performance when it is needed the most. Our mechanical systems are legendary and have decades of proven field service and have operated flawlessly in some of the most demanding jobsites around the globe. The mechanical device is one of the most critical parts of the rescue system. It provides the means to retrieve an incapacitated worker to safety. Lifeline type and length are just a few of the options. In some situations, a secondary or back up system is required.
